Intermodal Containers

Intermodal container is another name for the shipping containers. Or containerized cargo care intermodal containers. Once the cargo loaded into a container by a shipper it could transport in vessels, rails, and trucks without destuffing the goods. Hence these shipping containers often call as intermodal containers.  In order to smooth the container operation and container shipping International Organisation for Standards (ISO) has standardized the container sizes. This was a huge advantage to the containerized cargo. Same as the Unit Load Devices or the air freight containers, sea transportation also has different types of containers to meet the customer’s requirements.

More than 60% of global trade more via container shipping. Out of that 90% carry in general-purpose containers. Or we can say 80% cargo carry in the 20 and 40-foot standard-sized containers.

There are special type containers to carry other cargo like OOG and some liquid cargo.

Each container has 8 twist locks on the 8 corners of the container. Containers can lock with another container or on to a trailer or in the vessel using the twist locks.

As per the ISO 1496 of 1990 standard containers can stack one on one. We simply say containers can stack 10 higher. Yet modern ships are capable of stacking containers more than 10 higher to achieve economies of scale.

In general, containers are made with aluminum. Further general containers are airtight and water-resistant to preventing damage for cargo from the outside.

Signs and Marks on Containers

Marking on Container Daily Logistics

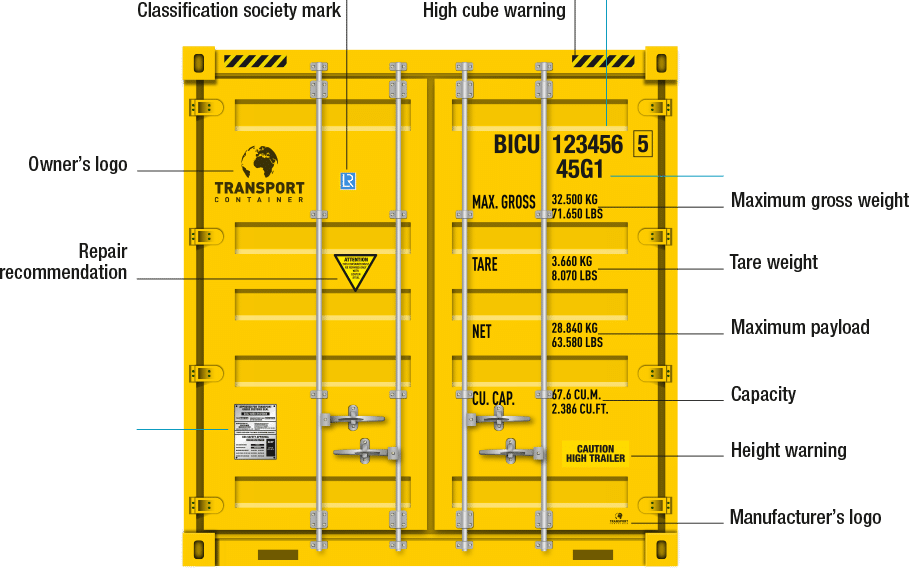

Intermodal containers markings

Each and every container has a unique number to identify the container. According to the ISO 6346 reporting mark, every container gets an ownership code. These ownership codes or the reporting mark is issued by the Bureau International des Containers (International container bureau, abbr. B.I.C.) headquartered in France. These reporting marks contain four letters with an ending letter of U, J or Z. After the four letters unique six digits and a check digit to be followed.

The letter represent below:

U for all freight containers,

J for detachable freight container-related equipment,

Z for trailers and chassis

The check digit is a single Arabic number and it is for the purpose of validating the recording and transmission accuracies of the owner code and serial number.

There are few codings that are marked on a container. The series of code on a container contains the manufacturer code, the ownership code, usage classification code, UN placard for hazardous goods, and reference codes.

What is the CSC Plate?

CSC Plate Daily Logistics
Intermodal container csc plate

For the safety of the containers and container shipping United Nations and the International Maritime Organisation jointly convinced a convention in 1972. This is called the International Convention for Safe Containers (CSC).

As per the convention, any container used for international transport must be fitted with a valid safety approval plate (CSC Plate). A safety plat is riveted to the outside of the left door at the time of manufacturing.

Information on the CSC plate should be either in English or French. Further the wording of “CSC SAFETY APPROVAL” should be embodied in the plate and country of approval and the approval reference should be mentioned.

It is the responsibility of container owners to do the safety checking for every container they have. Every container must be examined not more than 5 years after manufacture, and thereafter at intervals of less than thirty months. The next inspection date of the container (NED) should be mentioned on the CSC plate.

What is the letter stands end of a container number?

The letter mentioned end of each 6 digits number shows the type of the container.

R1 – Refrigerated Container

U1 – Open Top Container

P1 – Platform Container

T1 – Tank Container

What are the Markings on a Container?

There are mandatory markings to be done on an intermodal container. This is to give a visual warning to the users and to convey the information about the container.

Types of Intermodal Containers

As mentioned above there are different types of intermodal containers available. Below are a few and commonly available container types and their dimensions.

Standard Containers

20 foot shipping container Daily Logistics
20 Foot Container
40 foot shipping containr Daily Logistics
40 Foot Container

These are the most commonly used container type. 20 foot and 40-foot containers are highly used for intermodal transportation.  NVOCCs and freight forwarders commonly use these types of containers to consolidate cargo from their customers. Usually palletized cargo, boxed cargo in sacks, and bags stuff inside these containers.

Intermodal container sizes
Intermodal containers sizes

High Cube Container

HC shipping container Daily Logistics
40 HC container

High cube containers also know as Hi-cube containers. High cube containers are very similar to normal containers. The only difference is the height of these containers is higher than the normal containers. If you see a container with a yellow and black color zebra mark on top of a container door, that is the indicator to easily identify a high cube container.

Intermodal container sizes Daily Logistics
Intermodal container sizes

Reefer Container

Reefer Container Daily Logistics

Reefer containers are the same as the general container. But specialized to support the cold supply chain. All the temperature-sensitive cargo stuffed in reefer containers. Reefer containers can have a temperature control between -30°C and +30°C.

Since these containers need to be powered to keep the cooling system on, shipping a reefer container cost much more than a normal container.  Reefer containers have the capability to cool or freeze the cargo. 20 TEU container size uses to build the reefer containers.

Intermodal container sizes Daily Logistics
Intermodal containers sizes

Open Top Containers

Open top container daily logistics

Open top containers have an open-top for the container. These are the best fit for the OOG cargo. If the cargo height cannot be fitted to a normal container, an open-top container would be the best solution. As the top of the container is removable you have more space than in a normal container. Also, tarpaulin sheets use to make the top cover. Users can either keep the top open or use the tarpaulin cover to cover the container top.

Intermodal container sizes Daily Logistics
Intermodal containers sizes

Hard Top Containers

Hard top container daily logistics

Hard top containers are similar to open-top containers. The only difference is instead of a tarpaulin sheet it has a detachable steel roof. This roof can move using a forklift as the hard roof has pockets for lifting.

Intermodal container sizes Daily Logistics
Intermodal containers sizes

Pallet Wide Containers

Pallet wide container daily logistics

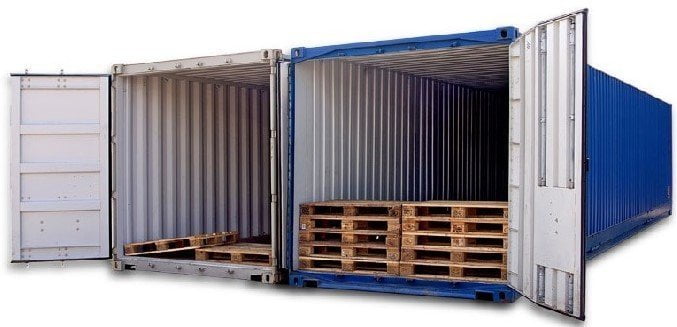

Pallet wide containers are specially designed and commonly used in Europe. These containers designed to carry pallets. Pallet wides are available in 20, 40, and 40 high cube sizes. In normal containers, 11 units of 120 x80 x14.4 CM size pallets can be loaded while 15 of the same can be stuffed in a pallet wide container.

Intermodal container sizes Daily Logistics
Intermodal containers sizes

Flat Rack Containers

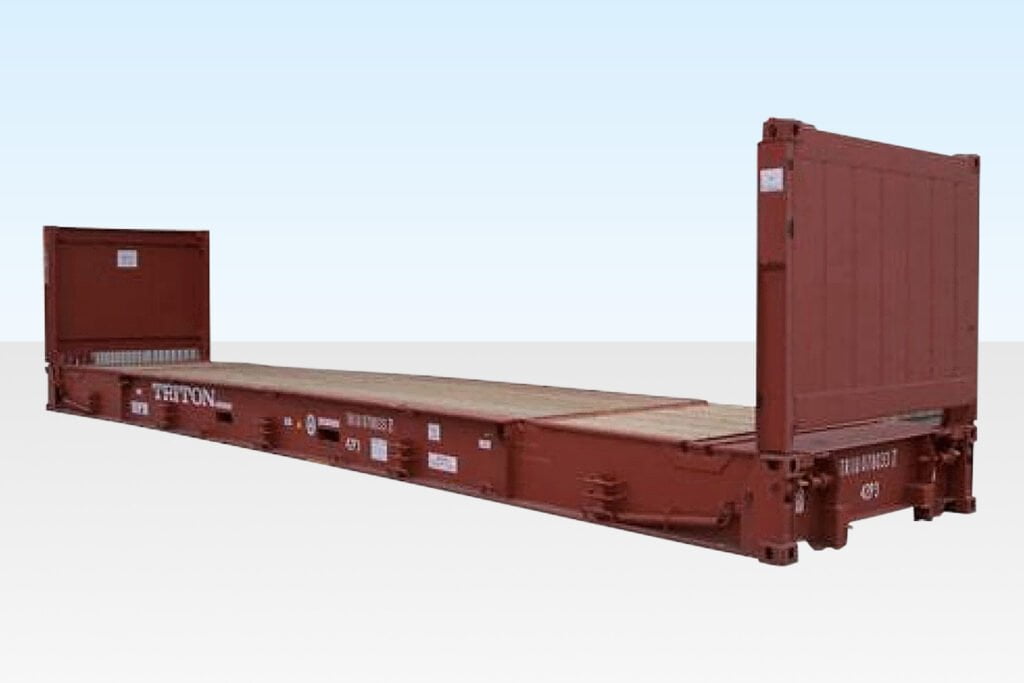

flat rack container Daily Logistics

Flat rack containers come with open 2 sides. Mostly use to carry heavily weighted cargo. Flat racks have few lashing rings along the flat bed of the container. This ensures the cargo stay fit to the flat bed while transporting.

The stacking of flat rack containers is not possible due to the nature of its dimension. Some flat racks have collapsable side doors while some do not. Collapsable empty flat racks can be stacked one on one to save space.

Intermodal container sizes Daily Logistics
Intermodal containers sizes

Open Side Containers

Open side container -container types daily logistics

Open side containers also known as side door containers. Other than the side door, the structure of one long side of the container work as an extra door. These containers are convenient for the cargo which cannot be loaded from the small side door.

Intermodal container sizes Daily Logistics
Intermodal containers sizes

Double Door Containers

double door shipping container -container type daily logistics

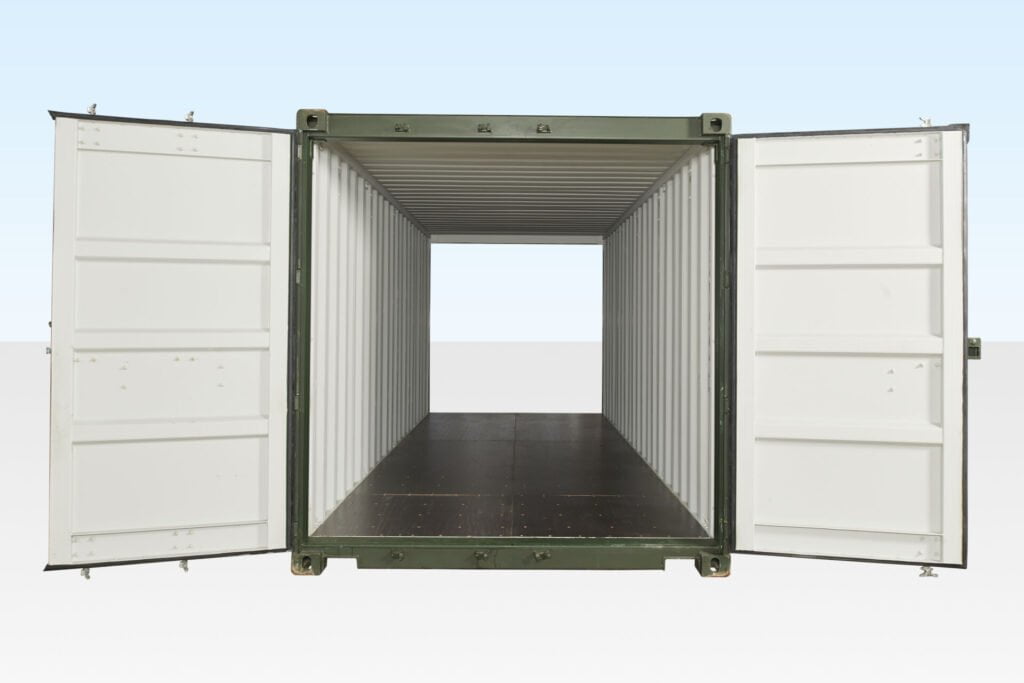

Double door containers have openable doors on both sides of the container. These types of containers are well suited to transport wheeled vehicles as the vehicle can drive in from one door and drive out from the other door at the destination.

Intermodal container sizes Daily Logistics
Intermodal containers sizes
These containers also known as tunnel containers.

Ventilated Containers

Ventilated container -shipping container daily logistics

Ventilated containers also known as coffee containers as they are highly using to transport coffee. 20 foot containers use as ventilation containers. Only different is these containers have two corner or four corner ventilation instead of air tight feature in general 20 foot container.  The openings of the container to provide ventilation does not attraact rain water or dust in to the container.

Intermodal container sizes Daily Logistics

Tank Containers

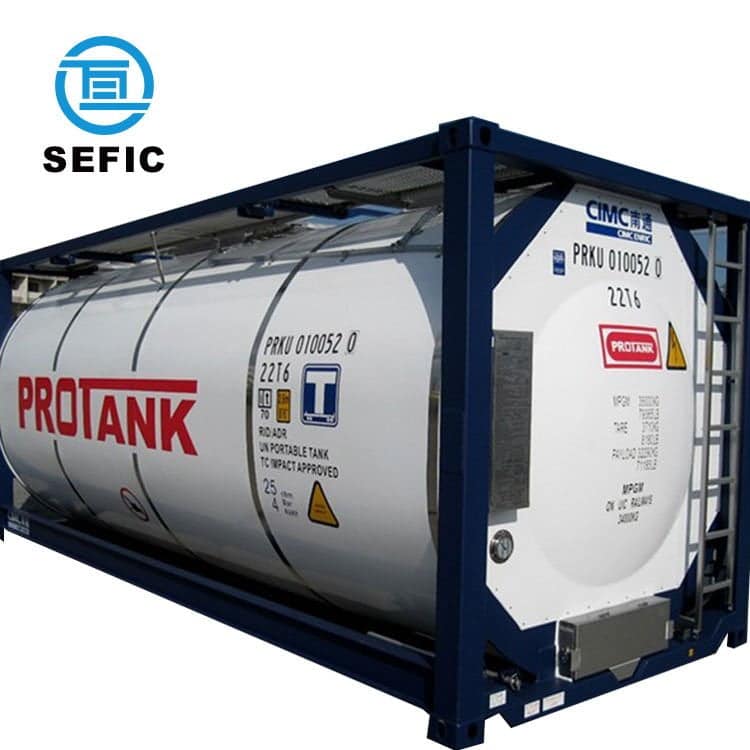

Tank container - Shipping container Daily Logistics
Photo Credit: SEFIC

Tank containers are a little different from the other containers. This type of container has a tank and a frame around the tank. Tank containers used to transport hazardous liquids as well as non-hazardous liquids like edible oil.

These containers have the facility to pump the liquid in and out with the fitted safety devices.

Intermodal container sizes Daily Logistics
Intermodal containers sizes
